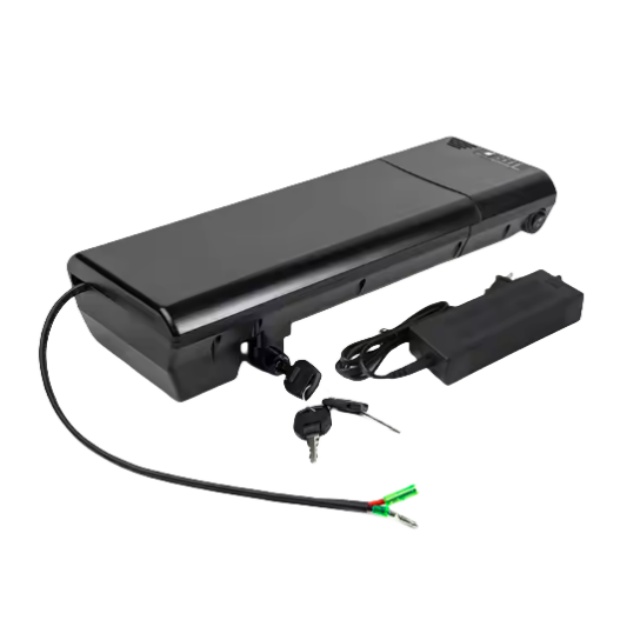

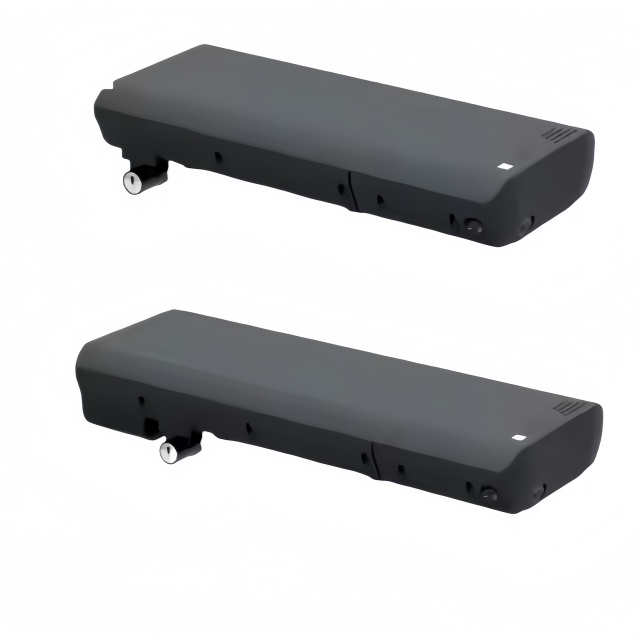

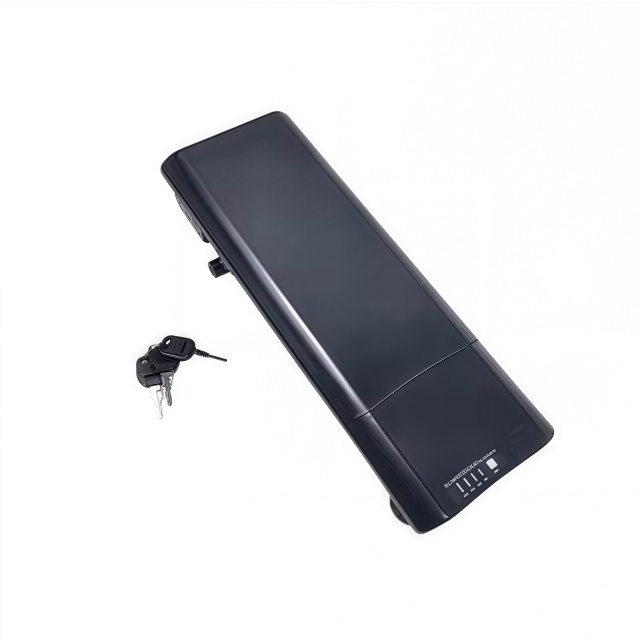

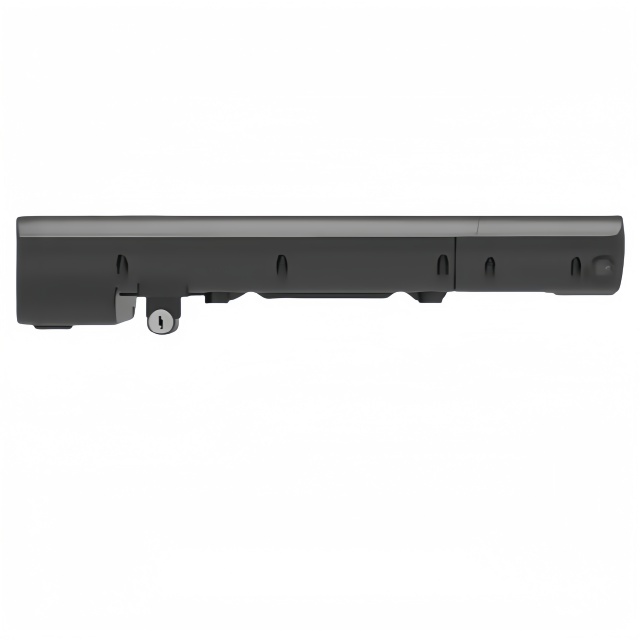

Kangaroo E-bike Battery RK-4C 36V/ 48V Lithium Ion Available
Our Services
* Best quality and the lowest price can meet your demand.
* Impeccable after-sales services will solve all worries after you buy our products.
* 24 hours on line to reply you immediately.
* OEM/ODM is available( logo/ design/ packaging and so on.)
* Every process will be checked by responsible QC which insure the products’ quality;
* Samples could be prepared for you on time;

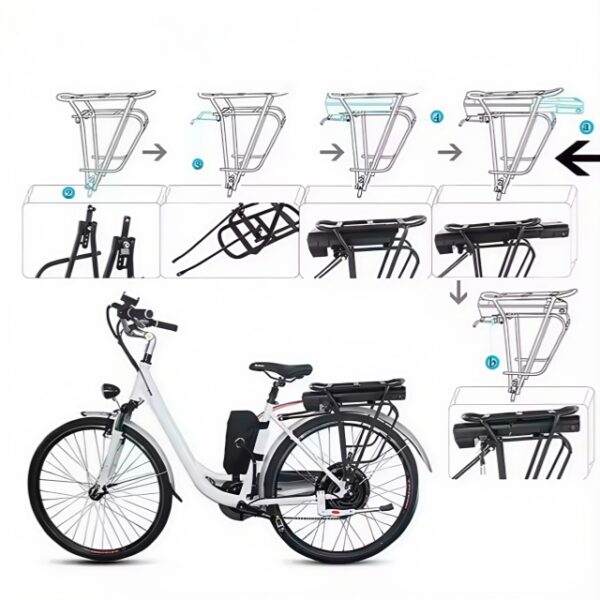

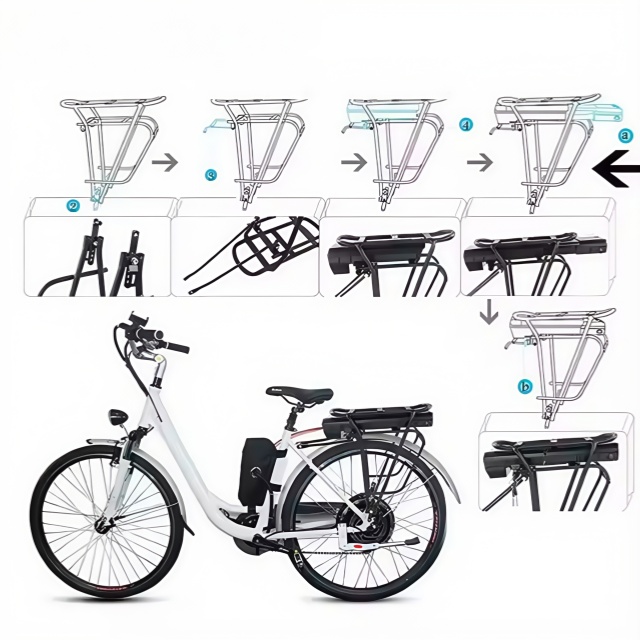

* Guide you how to install;
* Compensate for the product if some quality problems on our side;
* If you come to visit our factory, please inform us in advance.
Technical Data
| Item | 36V | 48V |
| Battery Type | NCM36V-RK-4C | NCM48V-RK-4C |
| Model No. | NCM36V-RK-4C | NCM48V-RK-4C |
| Nominal Voltage | 37V | 48.1V |
| High-voltage | 42V ± 0.2V | 54.6V ± 0.2V |
| Low-voltage | 25V ± 0.2V | 32.5V ± 0.2V |
| Cell#18650 | 10S 4P=40 pcs | 13S 3P=39 pcs |
| Max. Capacity | 14Ah/504Wh | 10.5Ah/504Wh |
| Constant Discharging Current | ≤ 20A | |
| Pulse Discharging Current | ≤ 40A | |
| Charging Mode | CC-CV | |
| Charging Current | DC2.1=3A or 4-pin=8A | |

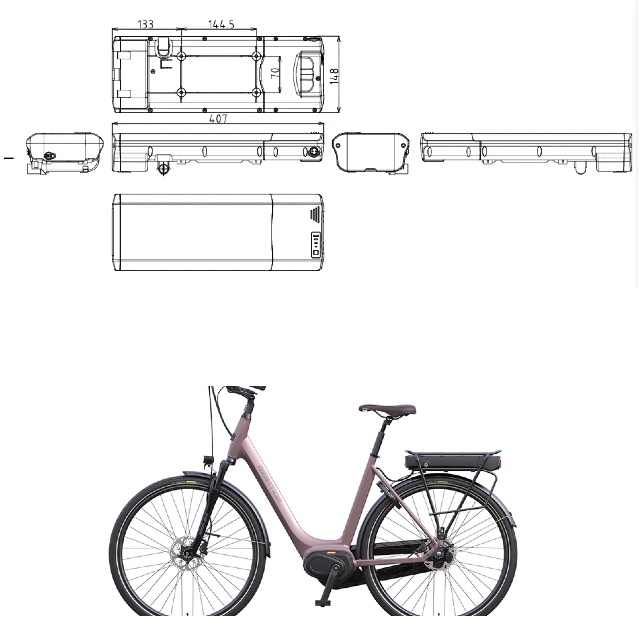

| Dimension | 407*148*74mm | |
| Refer. Weight | 2.6KGS | 2.6KGS |
| Protection | Low-voltage /High-voltage /Over-current /Short-circuit /Temperature sensor | |

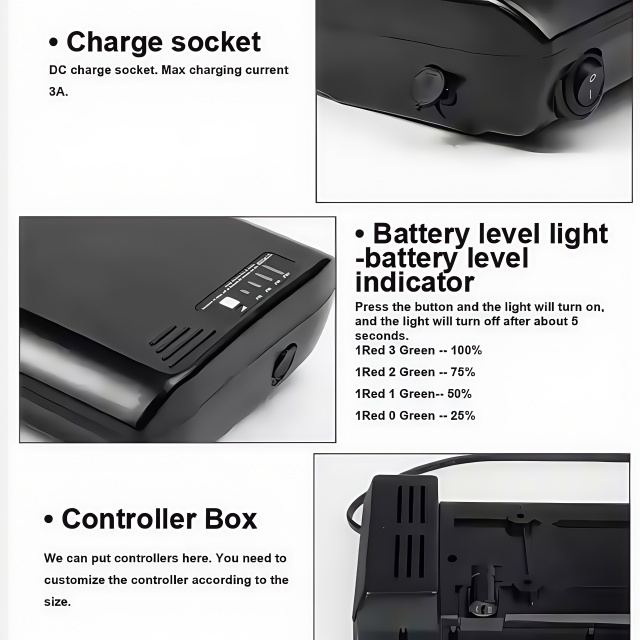

| Other Function | 4-LED indicator /ON-OFF switch /Controller Box | |
| Application | Electric bicycle, electric scooters, electric … | |
| Certification | UL /EN /CE /ROHS /UN38.3 / MSDS | |
Overviews
* Applicable for electric bikes, e-scooters, e-motorcycles,and other small vehicles;
* Fixed to the down tube easily and save space;
* Thin size and light weight with Plastic material;
* Special cell holders design is safer for cells’ vibration
